STRIPPIT P

STRIPPIT P
Дополнительное свойство Maximum material thickness / Maximum hit rate
Значение доп. свойства 6,35 mm / up to 300 HPM on 25 mm centers
Maximum material thickness 6,35 mm
Maximum hit rate up to 300 HPM on 25 mm centers
ПОЛУЧИТЬ КОНСУЛЬТАЦИЮ

Полное описание

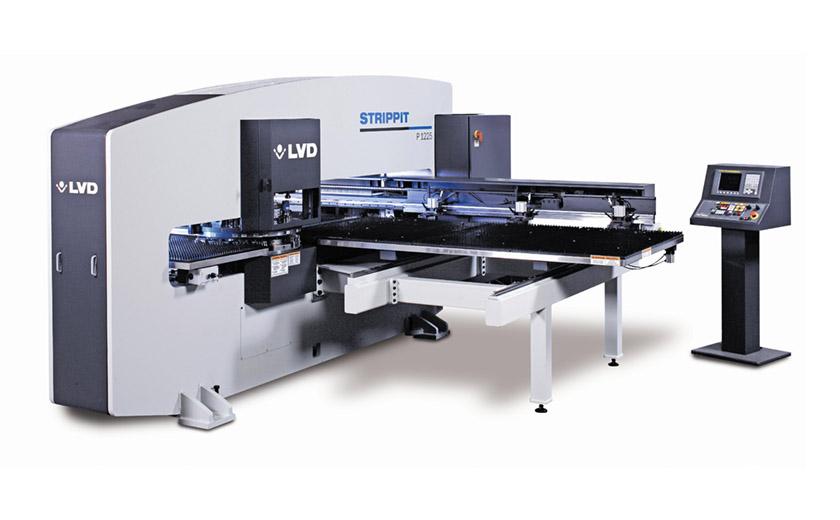

COST-EFFICIENT CNC PUNCHING MACHINE
For cost-efficient CNC punching in a reliable and user-friendly machine there’s the P-Series. Hydraulic ram technology delivers the highest punching rates of any punch press in its class. The ram system, rugged frame and CNC control ensure tight tolerances and consistent punching accuracy. The control offers simplicity for operator input of critical dimensions. The P-Series is ideal for shorter production runs, prototype production, job shop environments and cellular manufacturing.

KEY FEATURES

Flexible 33-station thick turret
Quick-change die holders
Wheel, tapping and full form tool capabilities
Smart Clamp ensures the smallest possible no-punch zones
25 mm feed clearance for more forming capacity
Easy-to-use Fanuc CNC control
PERFORMANCE-ENHANCING OPTIONS

CADMAN-P programming software
ABS automatic tool lubrication
MODELS

P 1212 (20 ton – 1250 x 1250 mm)
P 1225 (20 ton – 1250 x 2500 mm)
P 1525 (20 ton – 1524 x 2500 mm)
