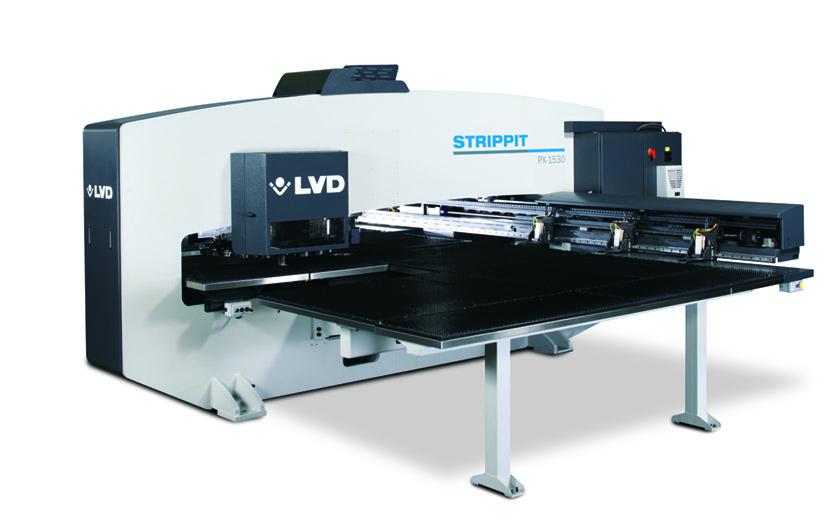

STRIPPIT PX

STRIPPIT PX
Дополнительное свойство Maximum material thickness / Maximum hit rate / Maximum hit rate
Значение доп. свойства 6,35 mm / up to 505 HPM on 25 mm centers / < 1000 HPM on 1 mm centers
Maximum material thickness 6,35 mm
Maximum hit rate up to 505 HPM on 25 mm centers
Maximum hit rate < 1000 HPM on 1 mm centers
ПОЛУЧИТЬ КОНСУЛЬТАЦИЮ

Полное описание

PUNCH, BEND, TAP & FORM ON A SINGLE MACHINE
Punch, bend, tap and form all on a single machine. The PX-Series punch press offers the ultimate in flexible production to handle even complex, three-dimensional parts. Its tool changer design features all-tool rotation – each tool is able to rotate a full 360 degrees. With a capacity of up to 200 tools, the ability to use any tool at any angle anywhere on the sheet, and the ability to form flanges up to 75 mm high, the PX-Series machine offers complete versatility.

KEY FEATURES

Single punch head system with retractable die and all tool rotation design
20 indexable tool stations
Accepts 5- or 10-station indexable multi-tool
T-style tooling compatible
Three fully programmable and re-locatable work clamps
Energy Reduction System minimizes power consumption
Smart Clamp ensures the smallest possible no-punch zones
Smart Stroke automatically optimizes ram stroke
Programmable parts removal chute
Integrated TOUCH-P control is intuitive and simple to use
PERFORMANCE-ENHANCING OPTIONS

CADMAN-P programming software
Opti-Bend tool system
Tap tool system
Automatic load/unload system
Flexible automation (FA-P)
Compact Tower (CT-P)
