STRIPPIT VX

STRIPPIT VX
Дополнительное свойство Maximum material thickness / Maximum hit rate / Maximum hit rate
Значение доп. свойства 6,35 mm / up to 530 HPM on 25 mm centers / 920 HPM on 1 mm centers
Maximum material thickness 6,35 mm
Maximum hit rate up to 530 HPM on 25 mm centers
Maximum hit rate 920 HPM on 1 mm centers
ПОЛУЧИТЬ КОНСУЛЬТАЦИЮ

Полное описание

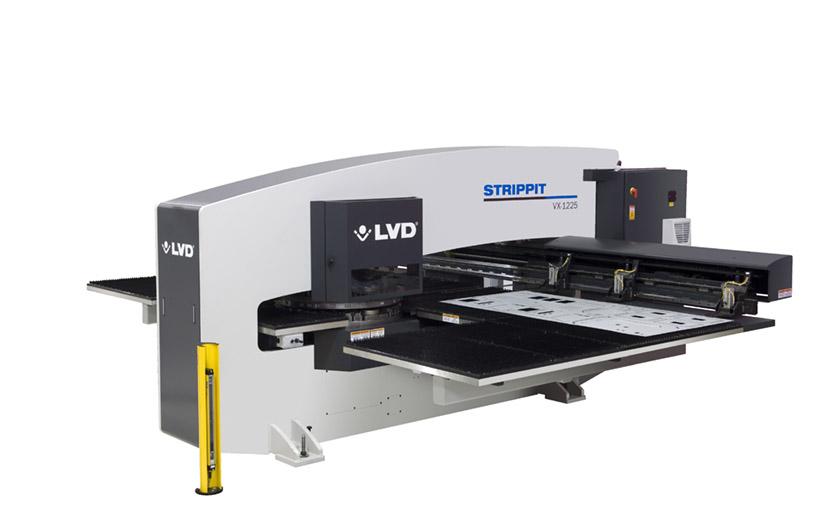

UNSURPASSED CNC PUNCH PRESS
The VX-Series is the choice for production applications demanding high productivity. These full-featured sheet metal punching machines are exceptionally versatile – high hit rates, large feed clearance and powerful control capabilities combine to enable optimal throughput. Full sheet utilization and heavy sheet carrying capacity also add capacity – as do smart features and automation options. It all adds up to punching productivity that is unsurpassed.

KEY FEATURES

Versatile 48-station thick turret
Four programmable 88,9 mm auto index stations
Indexable multi-tool capability offers more capacity
Three programmable and relocatable work clamps maximize sheet utilization
Energy Reduction System minimizes power consumption
Quick-change die holders
Smart Clamp ensures the smallest possible no-punch zones
Smart Stroke automatically optimizes ram stroke
Programmable parts removal chute
PERFORMANCE-ENHANCING OPTIONS

CADMAN-P programming software
ABS automatic tool lubrication
Automatic load/unload system
Compact Tower (CT-P)
Pick-sort robotic system
MODELS

VX-1225 (20 ton – 1250 x 2500 mm)
VX-1530 (20 ton – 1524 x 3050 mm)
